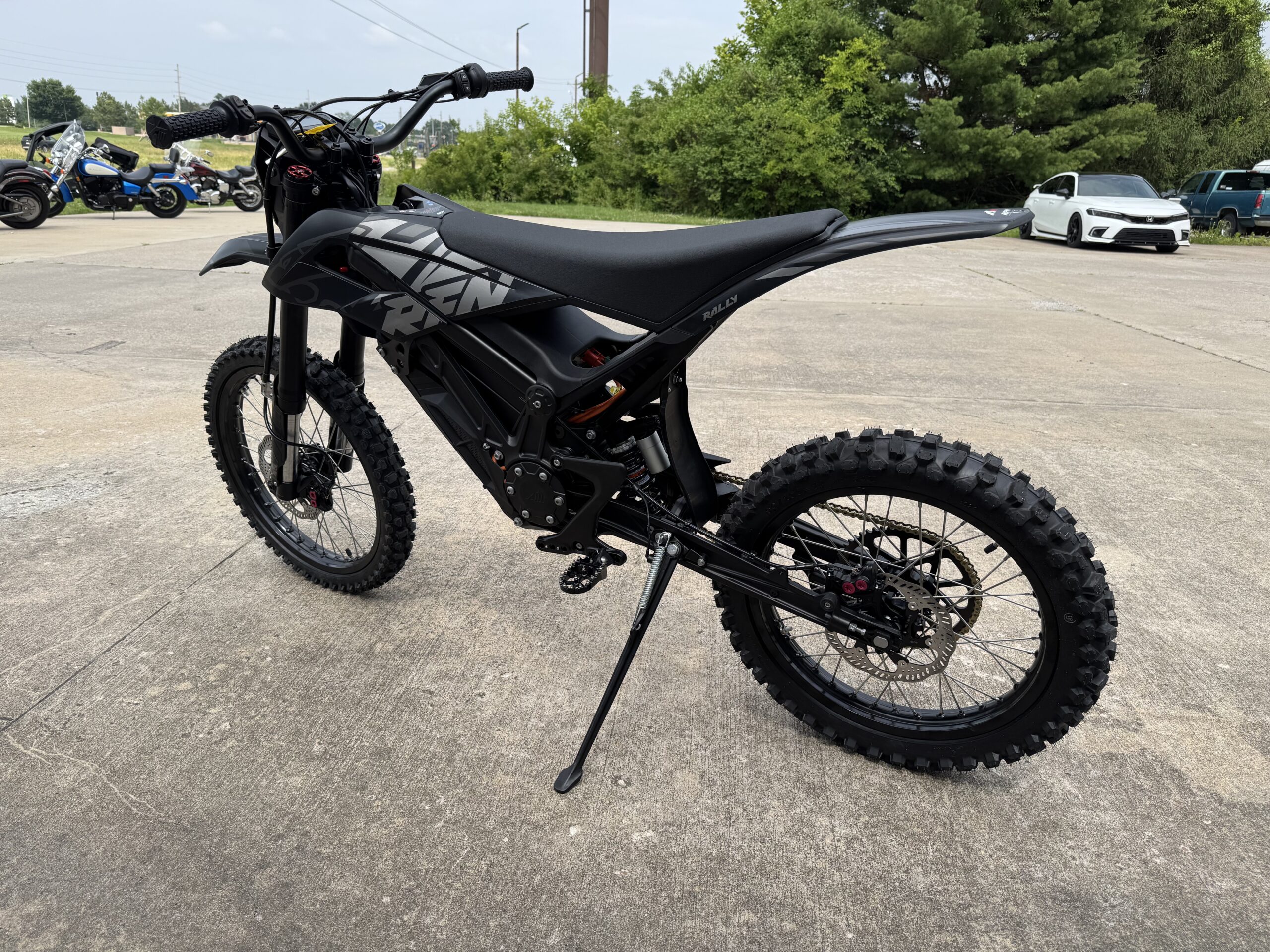

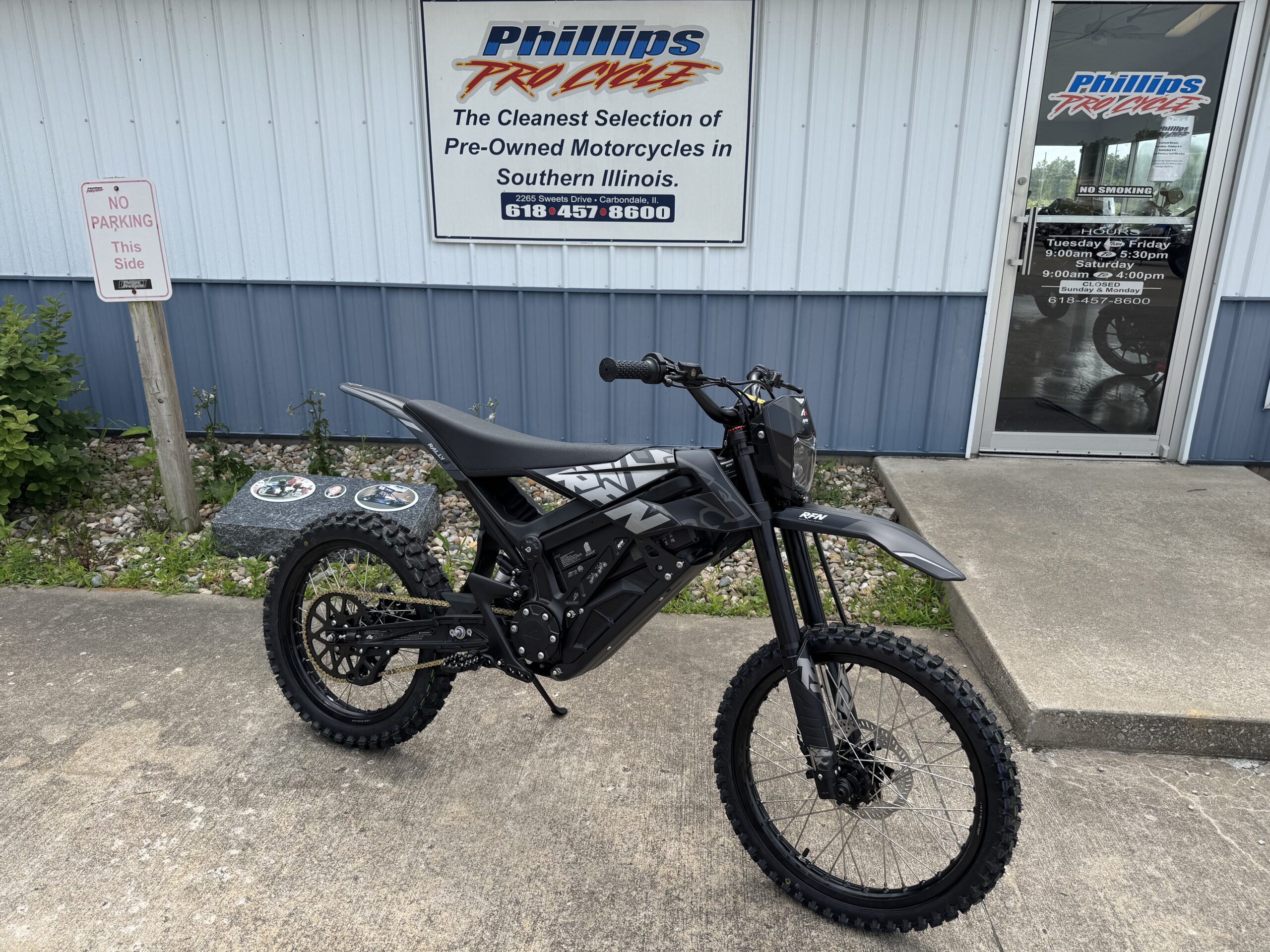

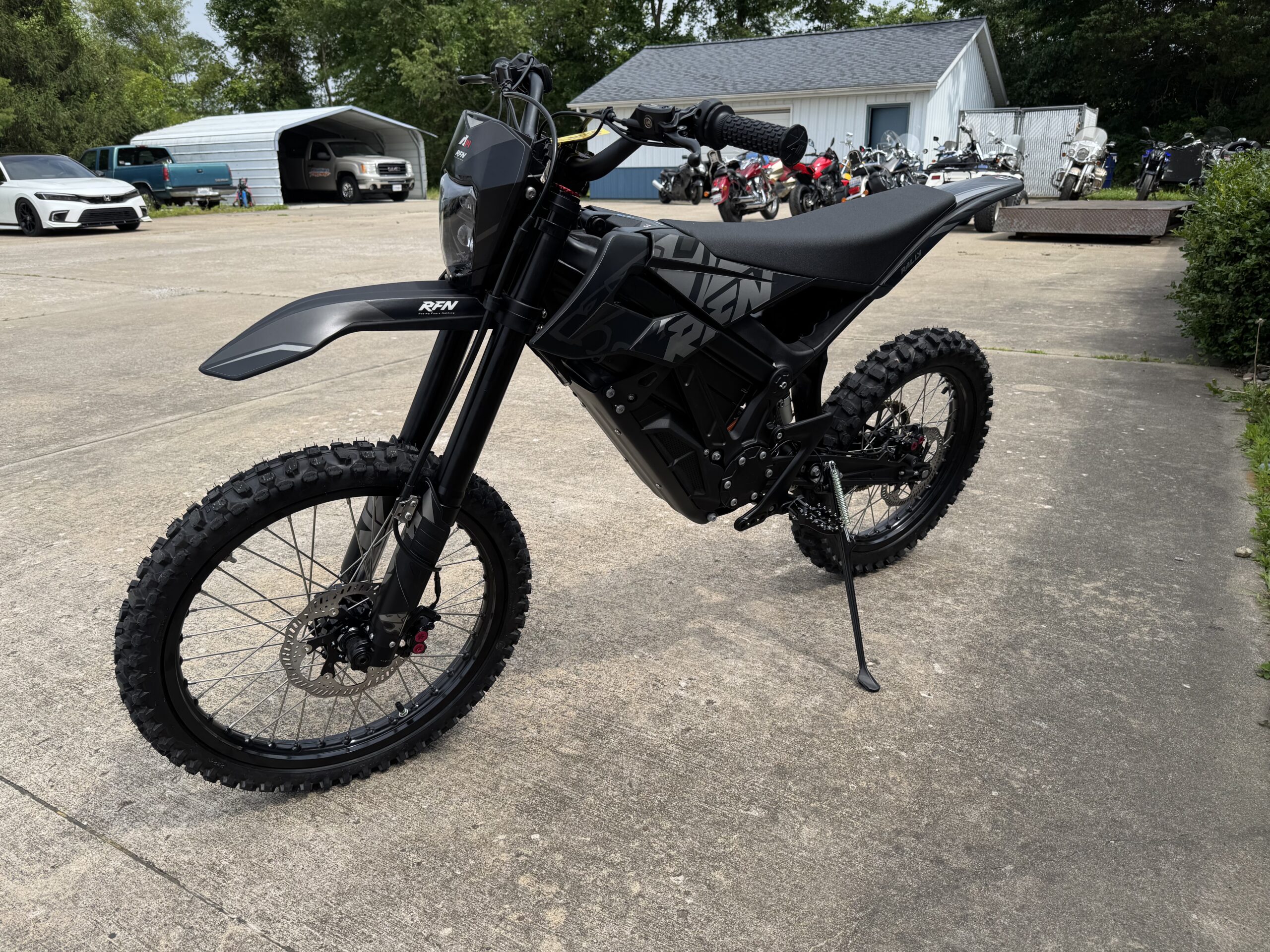

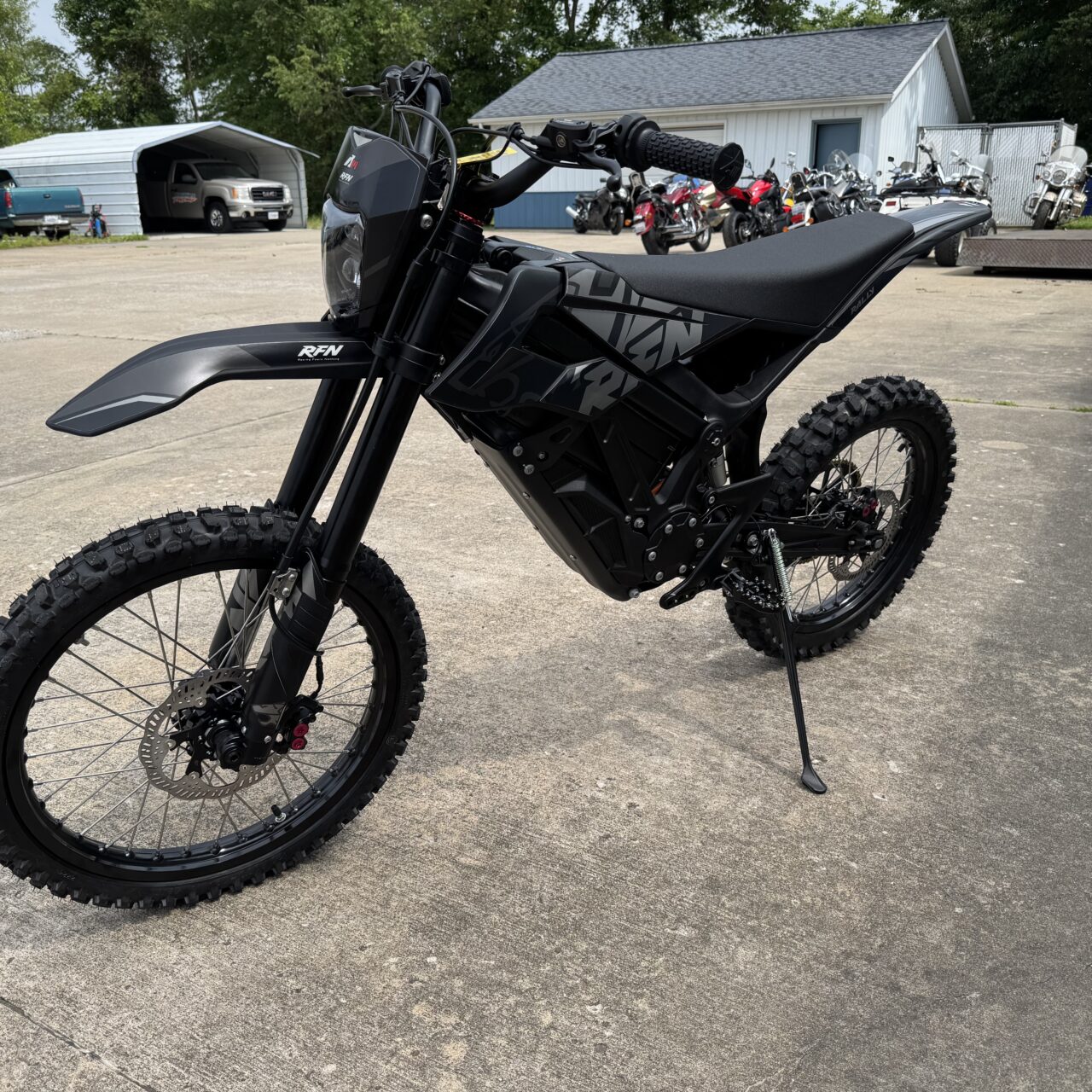

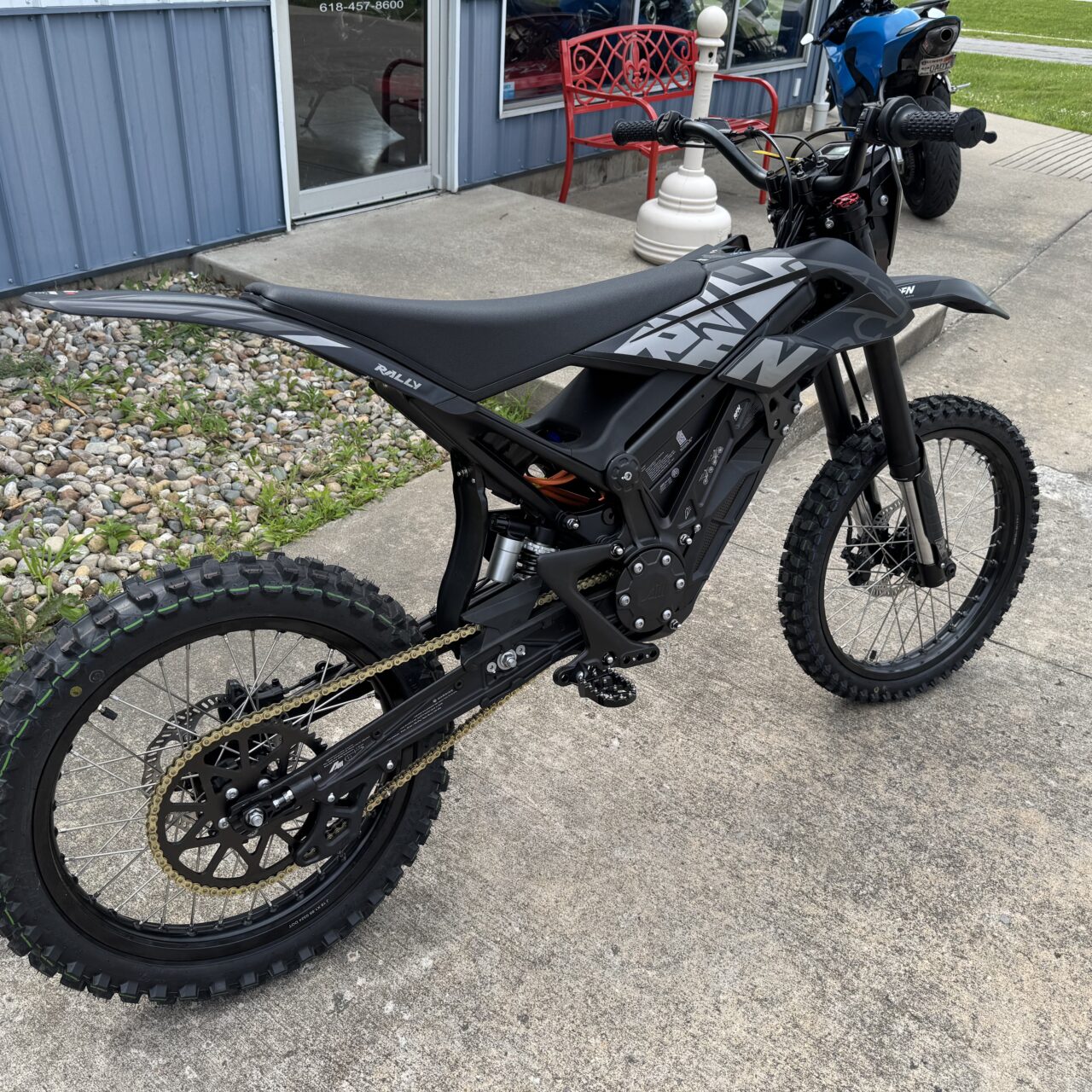

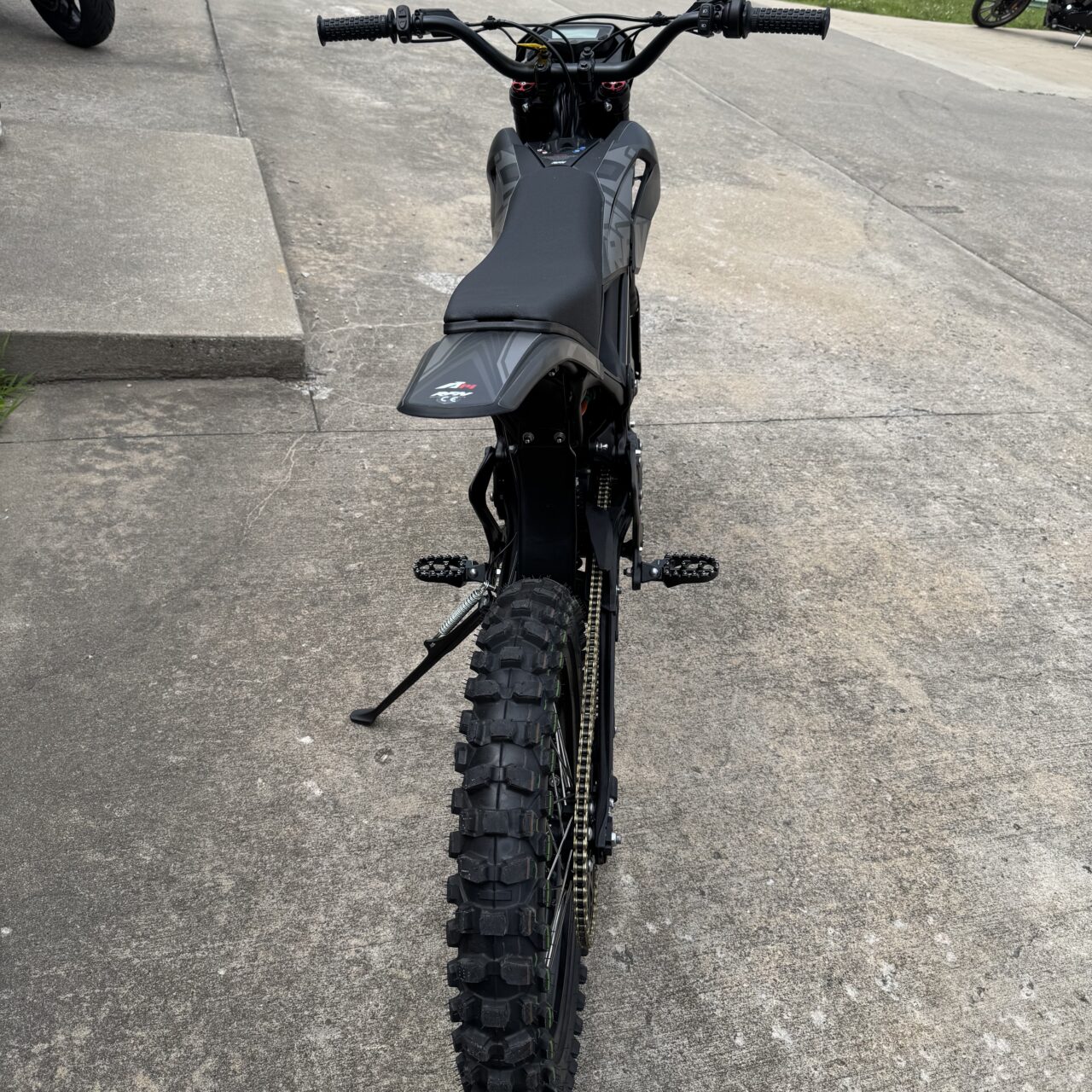

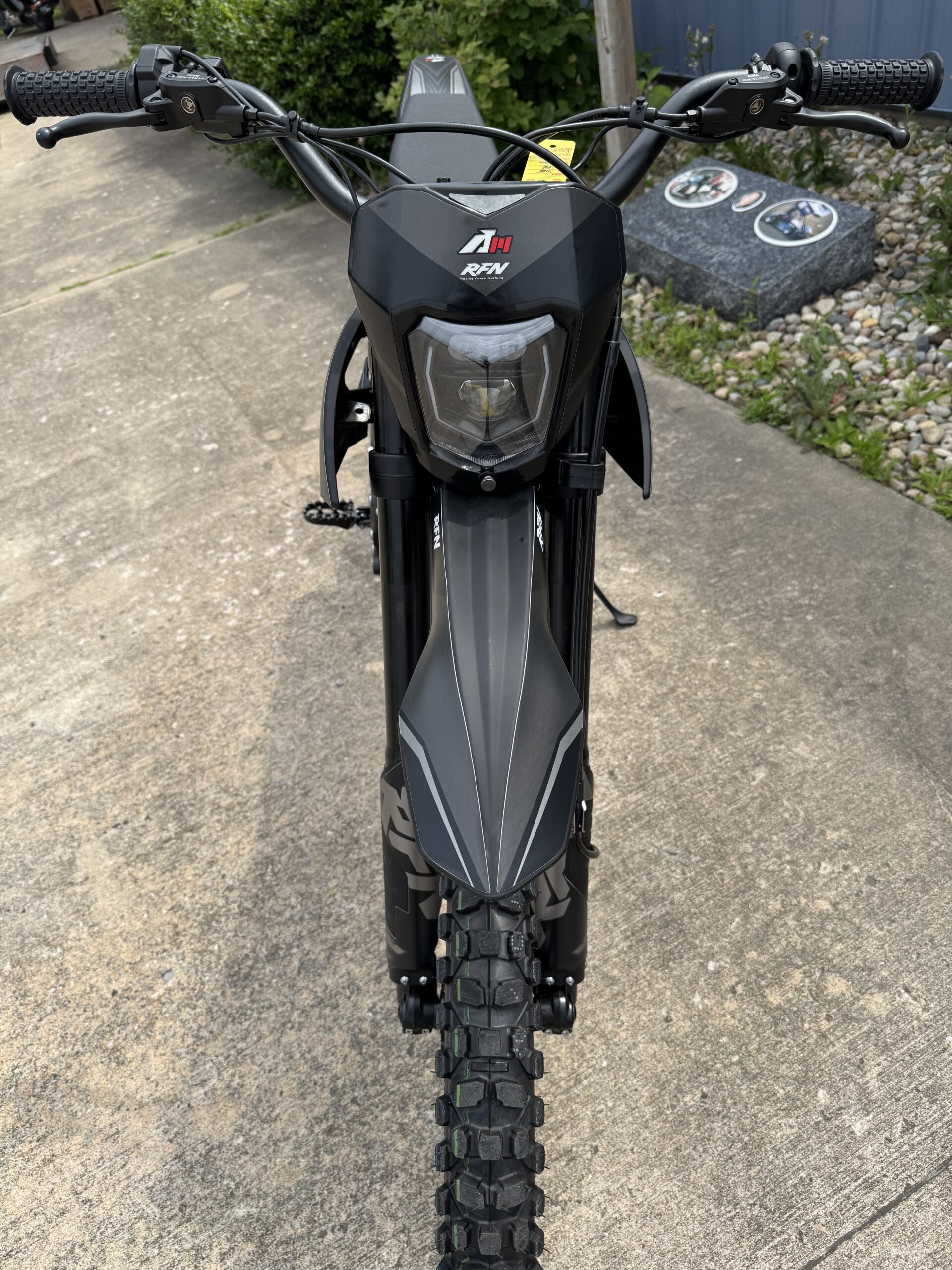

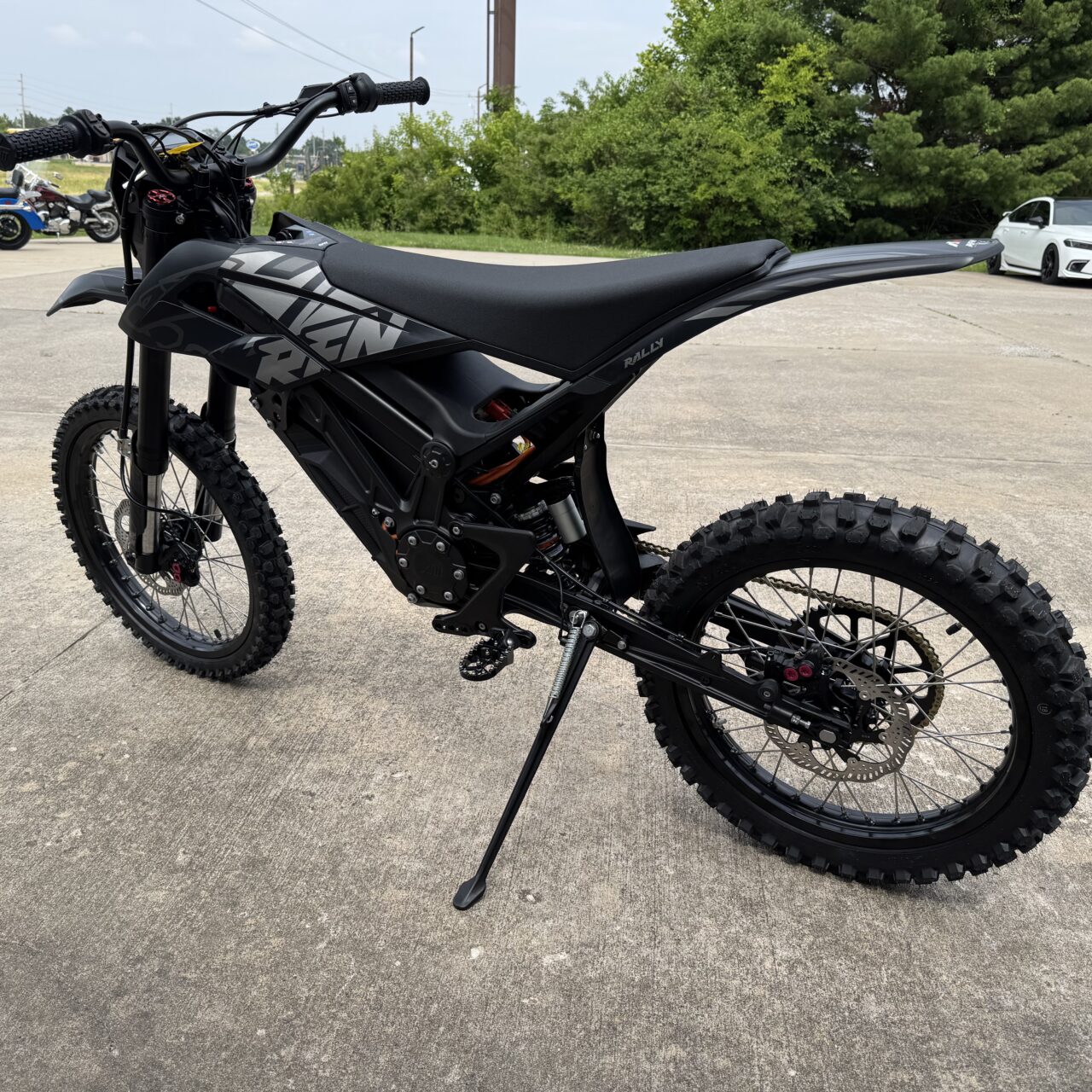

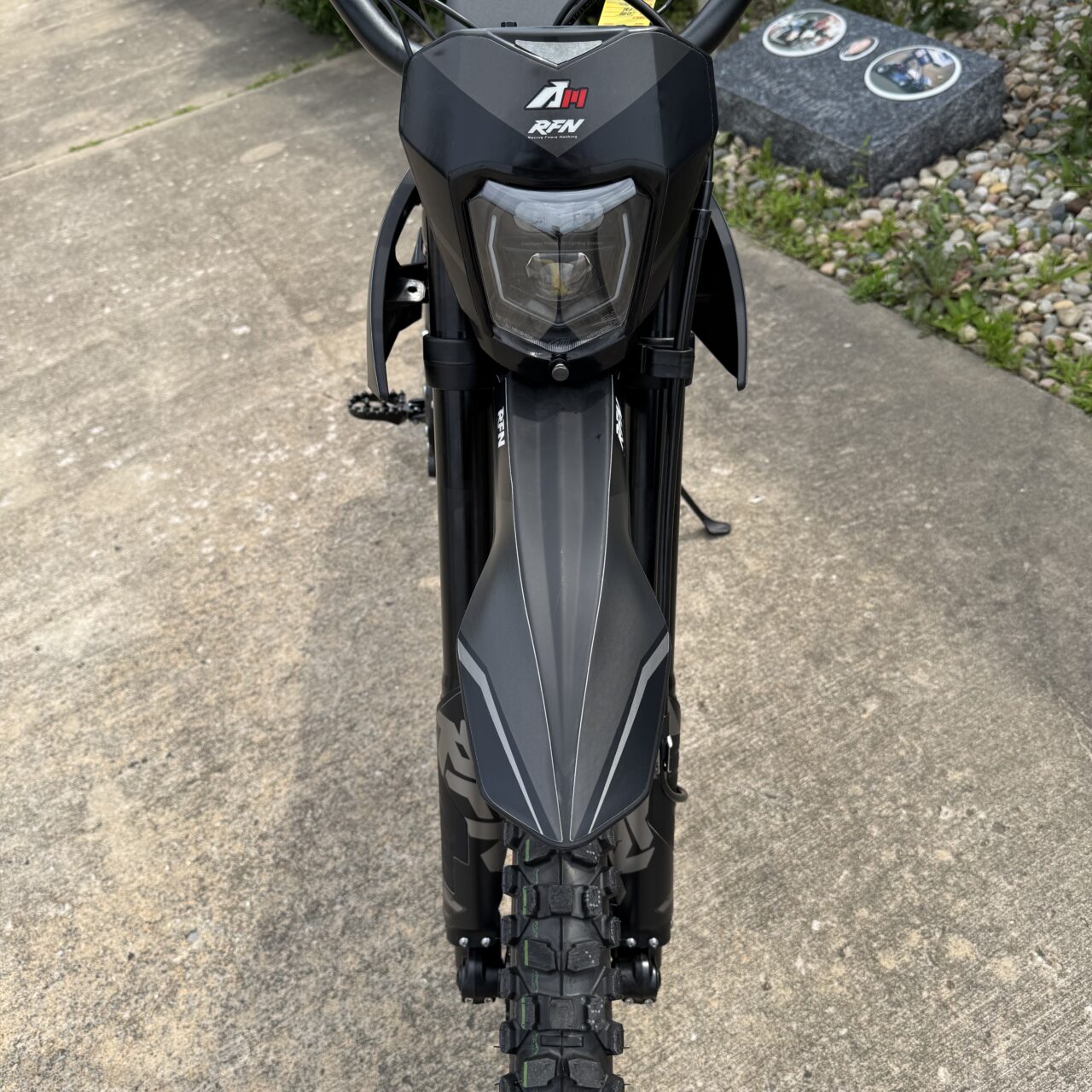

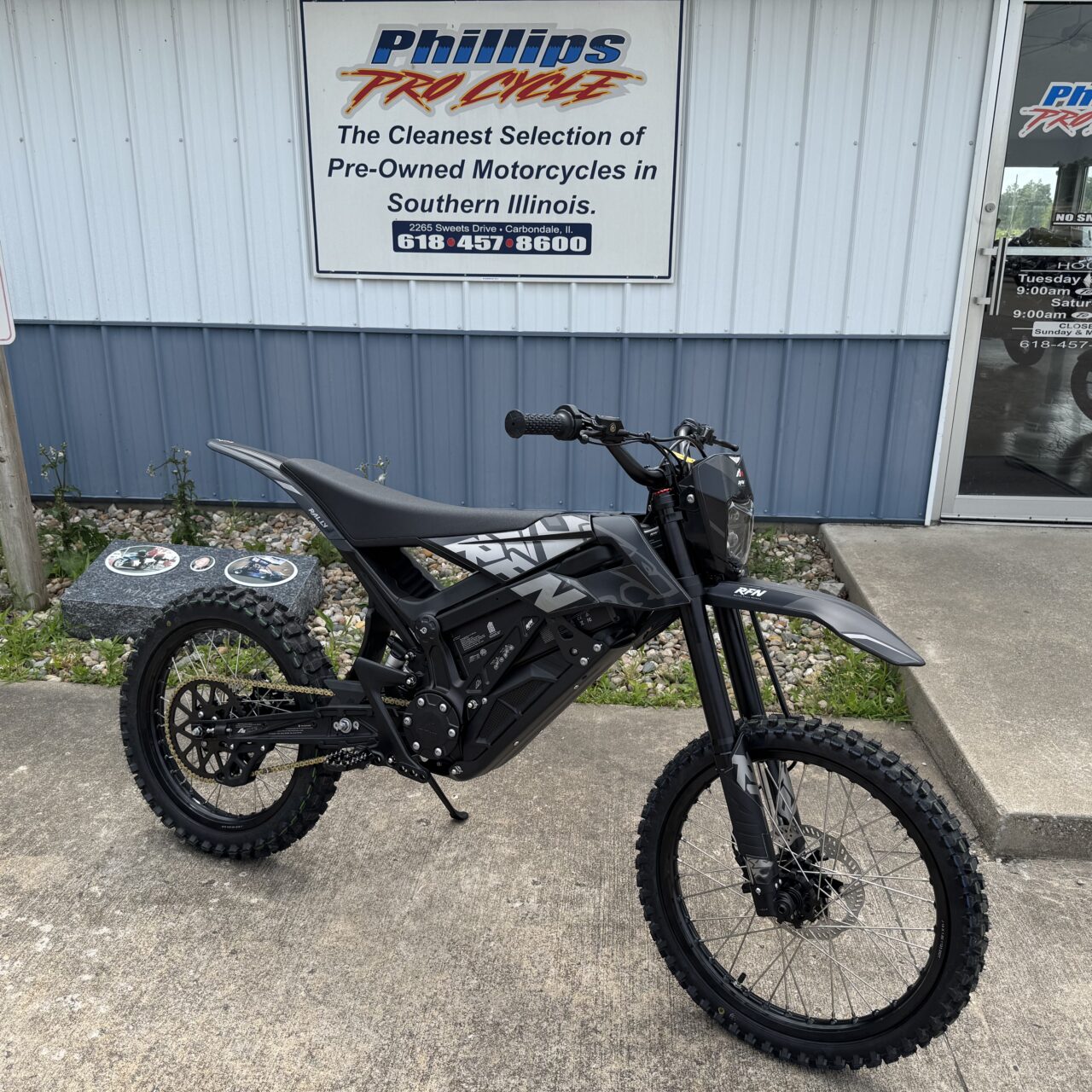

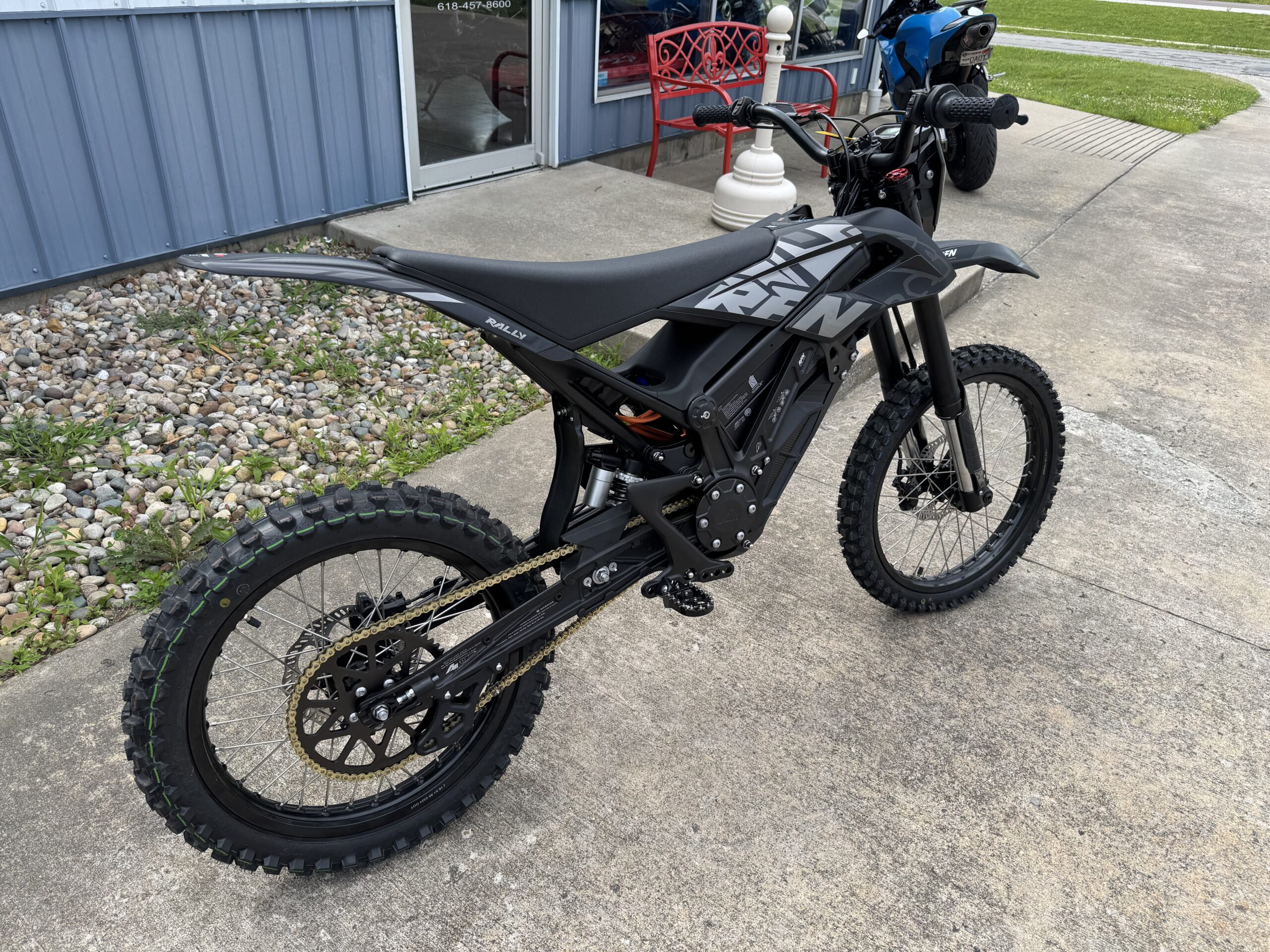

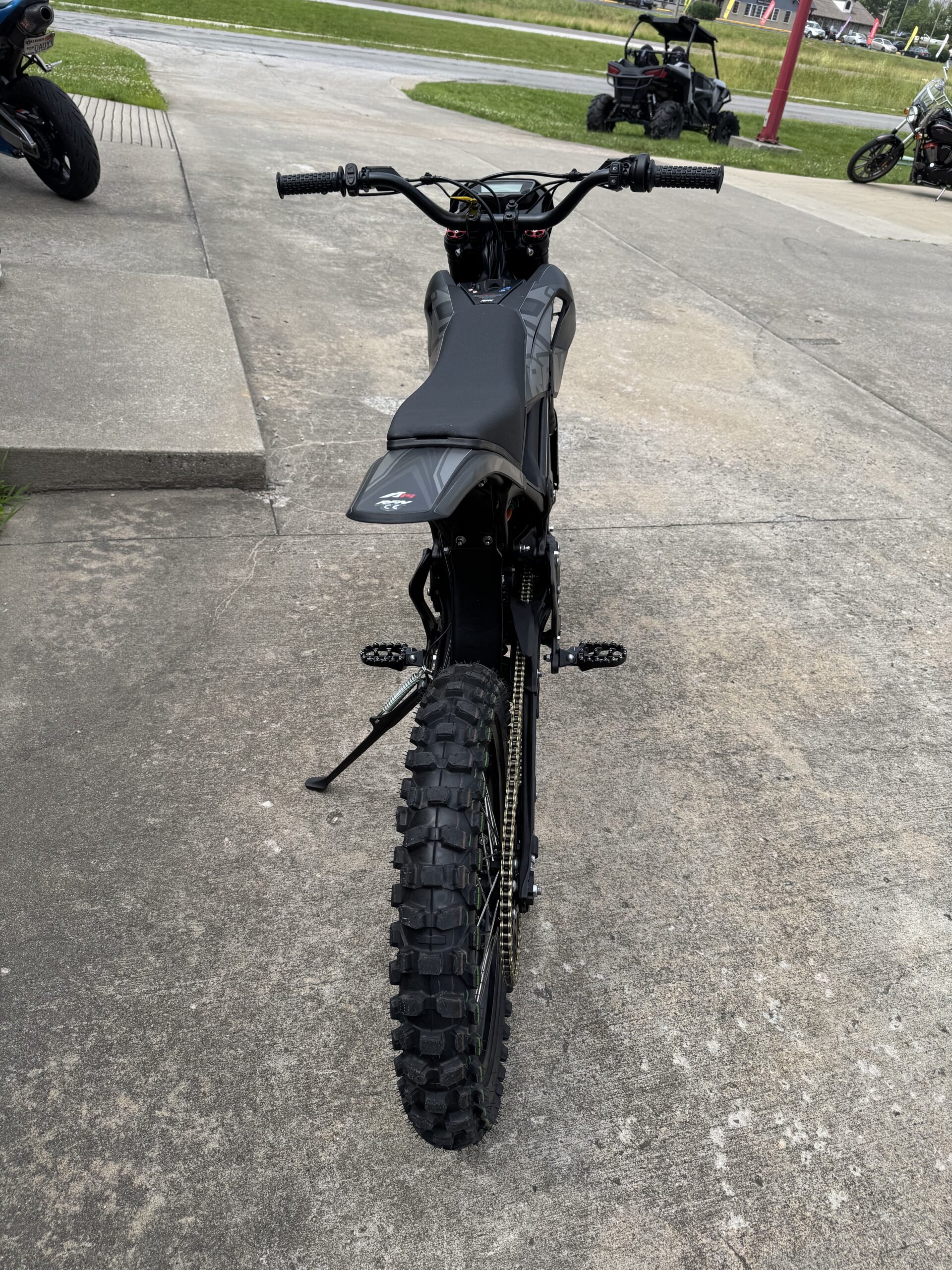

2024 RFN Ares Rally DLX Electric Dirt Bike (43ah)

POWER

 11-58T Max Torque 305 N·m (Max Torque of rear wheel: 305 / N-m Top speed: 75 km/h)

Battery

74V / 43Ah, 3182Wh, LG Premium 21700 lithium cells, removable, can be charged on a bike or separately.

Brakes

Front and Rear 4-piston DOT hydraulic with 210mm disc

Charging

2-3h with Quick Charge Function

Controller

Sine wave, Best-in-class power density, and state-of-the-art motor control algorithms.

Electric motor

Air-cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive

Drivetrain

Electric motor: Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chain with DX

Sprocket: 13T and 11T counter sprocket -58T rear sprocket

Rated power: 5 kW

Peak power: 12.5 kW**

Max Torque of motor: 58 N·m

Max Torque of rear wheel: 305 N·m

Dimensions

Fork angle: 340mm – 13.39”

Offset: 15mm in triple clamps, 45mm in forks.

Seat height: 860mm – 33.86”

Trail: 111mm – 4.37”

Wheelbase: 1330mm – 52.36”

Fenders & Bodywork

Material: PP/ABS plastic

Frame

Build: 6082 aluminum extruded, forged, CNC machined, and steel frame.

Front Suspension

Upside Down, 200mm travel, Fully adjustable

Handlebar

6061 aluminum, 760mm length

Handlebar

6061 aluminum, 760mm length

Rear Suspension

Mono-Shock, 74mm travel, adjustable

Regulatory

Certificate: CE

Ride modes

Mode 1: Tortoise mode: The ultimate mode of energy conservation exploration. Limited to 25 km/h with 3.5 hours battery range.

Mode 2: Rabbit mode: Enduro or active trail riding. 1-2 h riding time.

Mode 3: Rocket mode: Track and race mode, maximal torque and speed, riding time up to 9 Sec.

Mode 4: Reverse mode: Limited to 9 km/h.

Speed & Range

Range: 160 Km  (Test data Load: 75 Kg, 20 Km/h uniform speed, ambient temperature: 25 °C, flat pavement, standard tires, standard tire pressure)

Top speed: 65km/h

Weight

N.W of Battery: 15 kg (33 lbs)

N.W of whole bike: 68 kg (150 lbs)

Max load: 120kg (265 lbs)

Wheels & Tires

Hubs: Forged and CNC aluminium RFN hubs with 20mm axle.

Rims: F 19″/ R 18″ (Motorcycle standard) re-inforced, triple chamber, 7050 aluminium.

Tires: F: CST CM721 70/100-19 off-road , R: CST CM722 90/100-18 off-road
